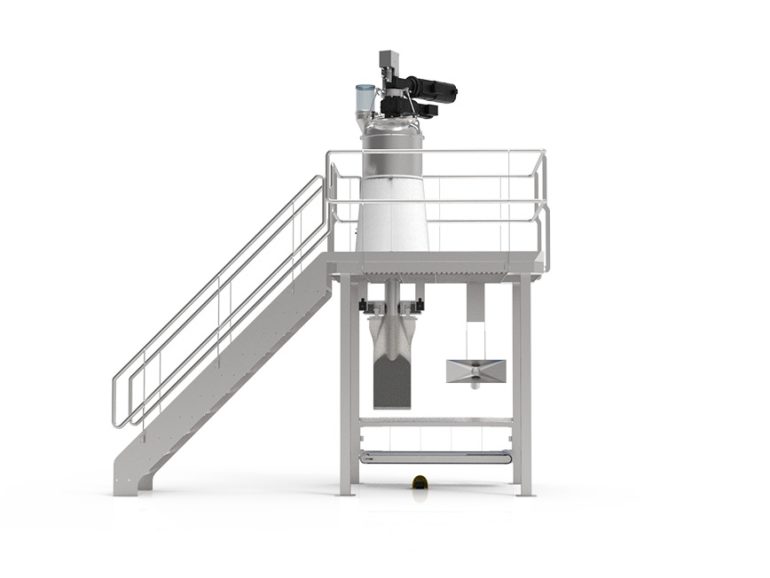

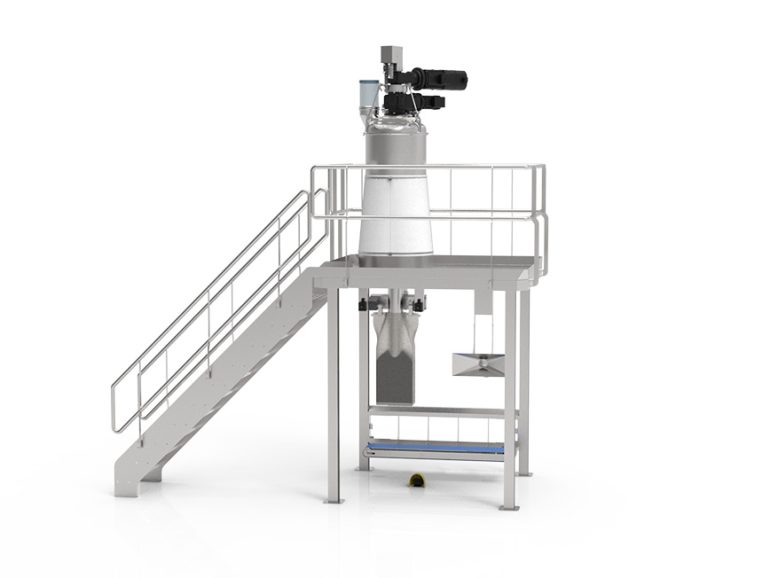

BM1012H
Semi-automatic bagging machine
for open-mouth bags
Halpaq’s BM1012 semi-automatic bagging machine is a bagging solution for packaging fine powder in the agri-food, chemical and pharmaceutical sectors. The bag is loaded manually, while the bottom-up filling process is automated. Designed for a throughput of up to 120 bags per hour, it combines ease of use with a simple design.
Description

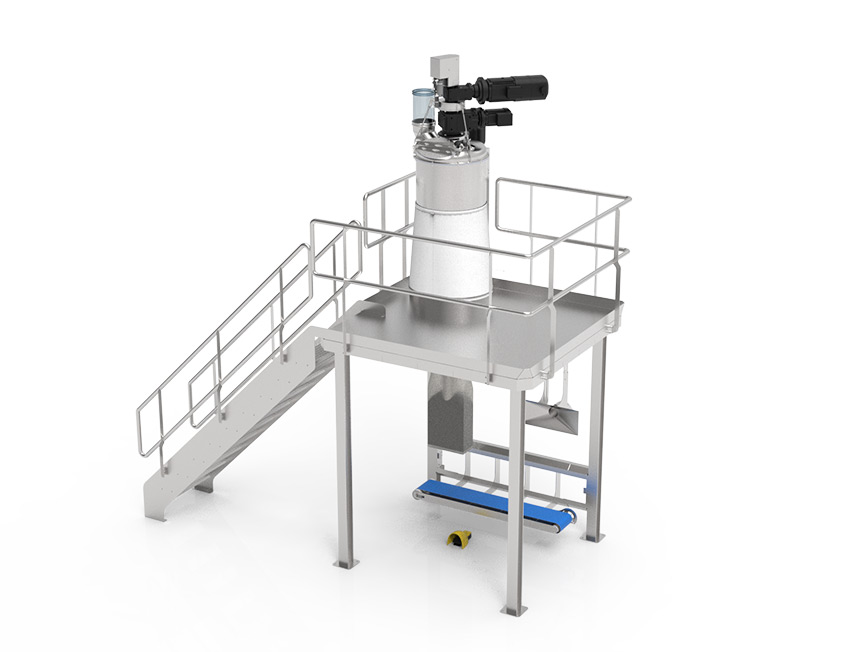

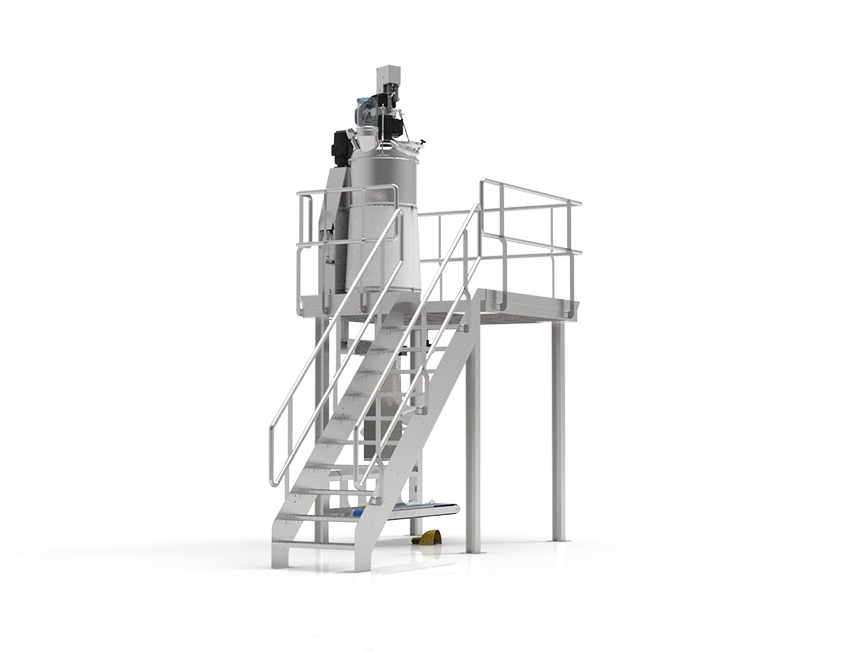

The BM1012V is a semi-automatic valve bagging machine specially designed for packaging fine powders, volatile or powdery substances. Equipped with a screw dosing system and bottom-up filling, it ensures accurate, consistent and clean bagging, minimising dust dispersion even with the most difficult products to handle.
Designed to meet and exceed the most stringent hygiene standards, the BM1012V is made of 304 stainless steel, with an option available in 316L for the most demanding environments. All parts in contact with the product are fully removable without tools, allowing for quick, simple and effective cleaning, which is essential for ensuring product safety and maintaining continuous production in compliance with current standards.
Compact but complete, this machine incorporates all the accessories necessary for reliable and ergonomic bagging, while offering a throughput of up to 120 bags per hour. It offers different weighing configurations, in gross mode to optimise throughput or in net mode to maximise accuracy. Its progressive filling system limits dust emissions and significantly improves working conditions for operators.
Its intuitive touchscreen interface facilitates the management of recipes and dosing parameters, making product changes quick and safe. Suitable for a wide variety of paper, multi-layer, aluminium or plastic bags, from 5 to 50 kg, it offers maximum flexibility for manufacturers in the agri-food, chemical and pharmaceutical industries looking for a robust, reliable and hygienic solution for packaging fine and volatile powders.
Key features
Automatic bottom-up dosing
Progressive filling from the bottom, effectively limiting dust emissions.
Hygienic design
Quick and easy removal of contact parts for easy cleaning.
Highly versatile
Compatible with a wide range of containers and formats to meet all your production requirements.
Adaptable weighing modes
Choice of gross or net weighing as required, with an accuracy of ±20 g.
Technical specifications
| Filling weight range | 5 to 50 kg |
| Maximum speed | Up to 120 bags per hour |
| Weighing accuracy | ± 20 g |
| Compressed air consumption | 50 Nl/bag at 4 bar |
| Dimensions (L x W x H) | 2,000 x 2,000 x 4,500 mm |
| Machine weight | 500 kg |
Select your finish
Choose from our Clean, Hygienic and Pharmaceutical configurations.
CBM 1012 – “Clean”
Designed for less demanding products and environments. Designed to be cleaned manually.
- Tubular, open frame
- RAL 7035 painted steel structure
- Parts in contact with the product in 316L stainless steel
- Centralized aspiration
- Design in accordance with EHEDG standards
Ideal when hygiene is not critical.
Objective: Accessible surfaces, no product retention and no visible cables.
HBM 1012 – “Hygienic”
Designed for regular, intensive automatic or manual cleaning.
- Closed frame with product retention trays
- 304 stainless steel structure
- Parts in contact with the product made of 316L stainless steel
- Centralized aspiration
- Design compliant with EHEDG standards
- CIP network optional
- Inerting optional
Made of 304 stainless steel, designed for frequent cleaning.
Objective: Smooth surfaces without retention, mechanisms that can be dismantled without tools, possibility of drying in place.
PBM 1012 – “Pharmaceutical”
Designed for intensive and recurrent cleaning and sterilisation.
- Closed frame with retention tanks for the product
- 316L stainless steel structure
- Parts in contact with the product made of 316L stainless steel
- Centralized aspiration
- Design compliant with EHEDG standards
- CIP network optional
- Inerting optional
- Optional sterilisation
High-end finish for the pharmaceutical industry.
Objective: Polished stainless steel (Ra 0.4) compliant with GMP requirements. Fully accessible surfaces, with no retention areas or visible cables. Mechanisms can be dismantled without tools for cleaning and drying in place (CIP/SIP).
Auxiliary equipment
Our engineering team can customise every aspect of the system to meet your unique requirements: from bespoke parts to complete systems for your specific processes.
- Automatic bag sealer
- Semi-automatic bag closing line
- Labelling machine - Printer
- Reject conveyor
Filling system specific to the characteristics of your product.
Deaeration probe to remove air from the product.
Vibrating bottom for compacting and stabilising the product in the bag.
Fields of application
Our bagging solutions meet the most stringent requirements of the chemical, food & feed and pharmaceutical industries, guaranteeing hygiene, safety and productivity. Halpaq adapts each packaging line to your specific requirements, whatever your products and volumes.
Is your sector of activity not listed?
Materials handled
Powders
& Fine powders
- Starch
- Protein powders
- Thickeners/gelling agents
- Ground spices
Pellets
and Medium Granule Products
- Granulated nitrates and perchlorates
- Granulated organic peroxides
- Yeast flakes
- Vitamin flakes
Special Materials
& High Value Products
- Active Pharmaceutical Ingredients (APIs)
- Lactose powder
- Microcrystalline cellulose
- Mannitol, sorbitol powder
