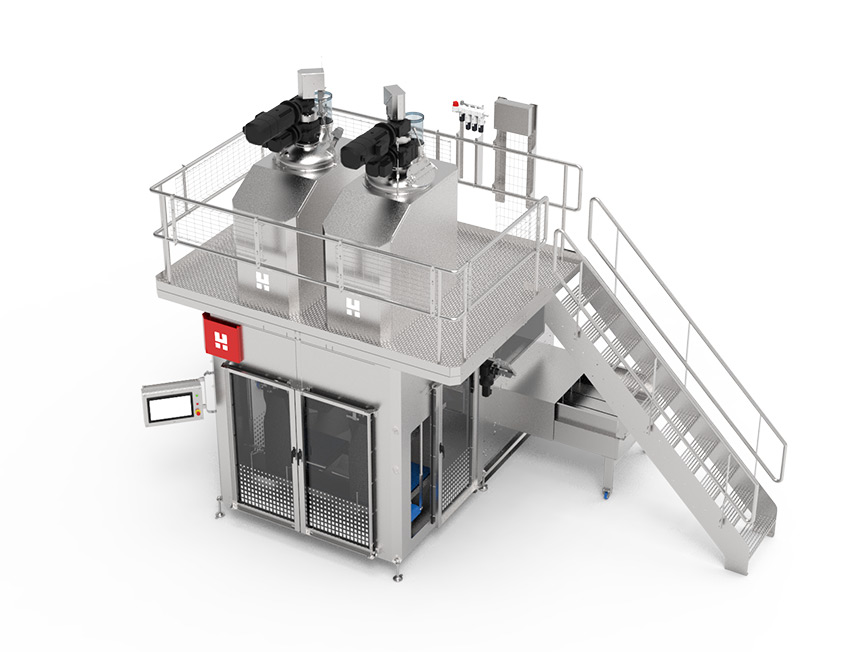

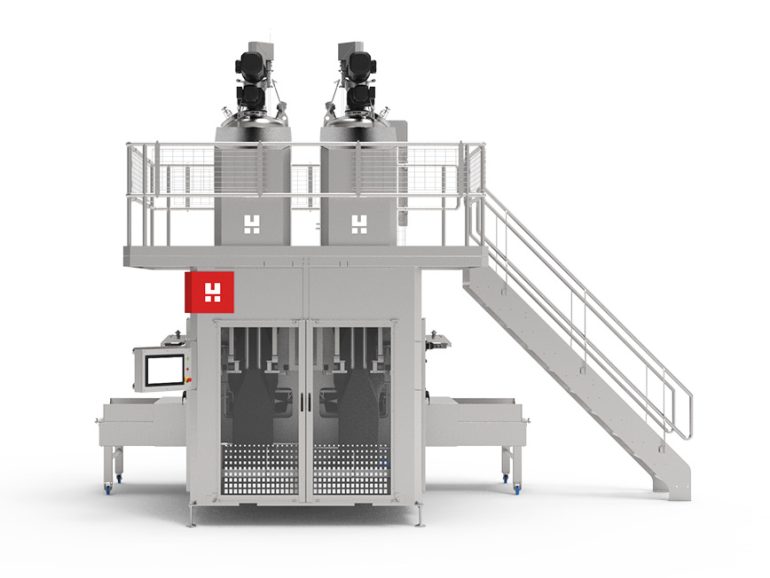

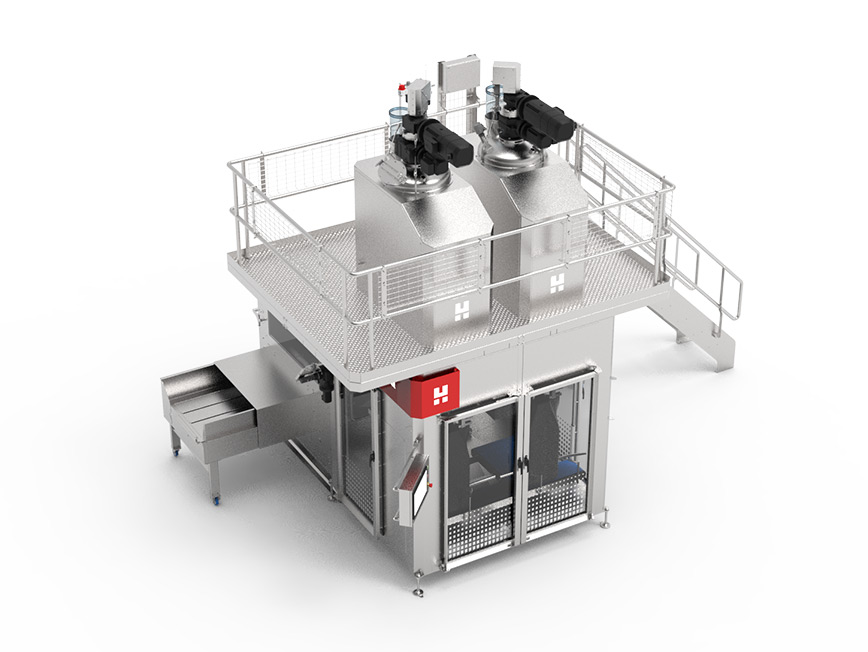

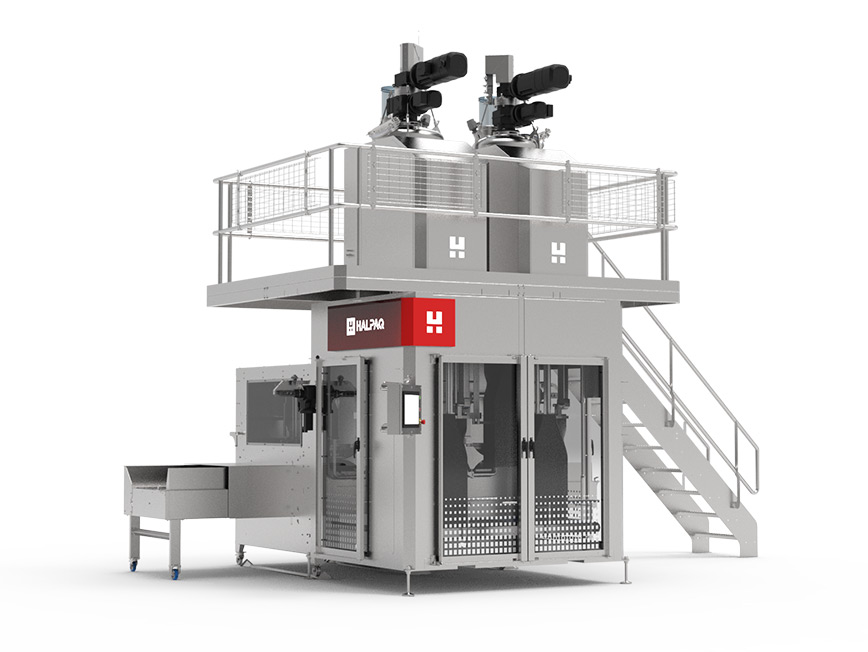

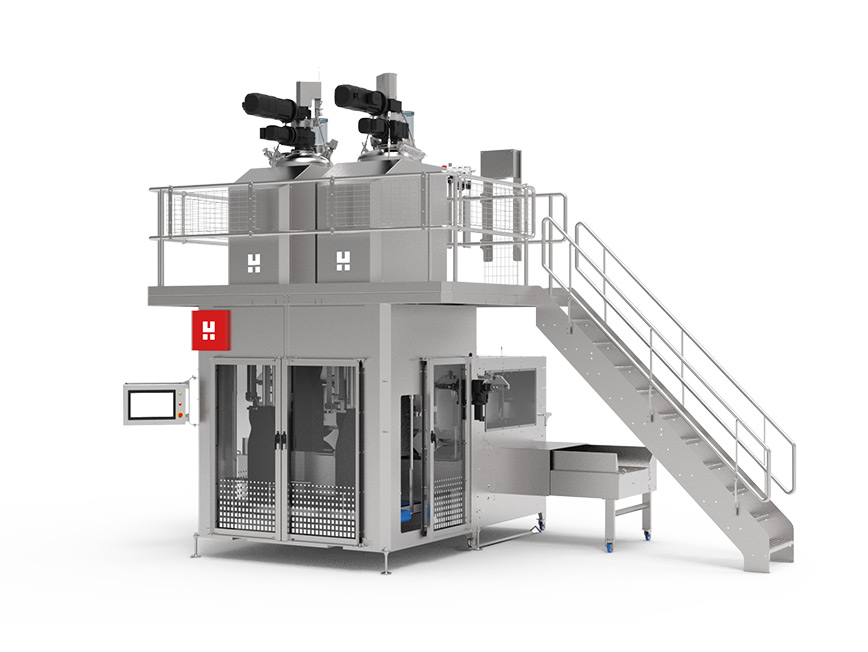

BM 2060
Automatic bagging machine
for open-mouth bags
Designed for high production rates and compliant with the strictest hygiene standards,
the BM2060 is equipped with a double head and specially designed for packaging powdered and granulated products.
It is ideal for open-mouth bags, with or without gussets.
Description
The BM2060 is an automatic open-mouth bagging machine, specially designed for precise and hygienic dosing of powdered products. Thanks to its double filling head, it can achieve a speed of up to 600 bags per hour while maintaining high precision.
Each bag is automatically positioned under a filling head. After filling, the bags pass through a deaeration station before being directed to a closing system – either a sewing machine or a sealer – ensuring optimal product preservation.
Its patented filling technology minimises dust emissions and product aeration, making it ideal for sensitive powders while ensuring a clean and controlled environment. Designed to combine safety and hygiene, the BM2060 offers an intuitive solution, dust-free, requiring little maintenance and easy to clean, perfect for the hygienic packaging of powders.
Key features
Design compact
Compact design for easy integration into existing production lines.
Automatic format change
Quick and automatic adjustment of settings for effortless transition between different bag and product formats, maximising your production time.
Unrivalled versatility
Capable of handling a wide range of bag formats (with or without gussets) and product types (powders, granules).
Continuous bag guidance and control
Holding and monitoring system ensuring perfect positioning and stable, precise operation from filling to closure.
Custom designs for hygiene
Unique on the market, available in three hygiene levels (Cleanable, Hygienic, Cleanroom) to meet the most stringent requirements of your industry (FDA, GMP, ATEX, EHEDG).
Technical specifications
| Filling weight range | 5 to 30 kg |
| Maximum speed | Up to 600 bags per hour |
| Weighing accuracy | ± 20 g |
| Compressed air consumption | 150 Nl/bag at 4 bar |
| Dimensions (L x W x H) | 4,500 x 2,500 x 4,500 mm |
| Machine weight | 3,000 kg |
Select your finish
Choose from our Clean, Hygienic, and Pharmaceutical configurations.
CBM 2060 – “Clean”
Designed for less demanding products and environments. Designed to be cleaned manually.
- Tubular, open frame
- RAL 7035 painted steel structure
- Parts in contact with the product in 316L stainless steel
- Centralized aspiration
- Design in accordance with EHEDG standards
Ideal when hygiene is not critical.
Objective: Accessible surfaces, no product retention and no visible cables.
HBM 2060 – “Hygienic”
Designed for regular, intensive automatic or manual cleaning.
- Closed frame with product retention trays
- 304 stainless steel structure
- Parts in contact with the product made of 316L stainless steel
- Centralized aspiration
- Design compliant with EHEDG standards
- CIP network optional
- Inerting optional
Made of 304 stainless steel, designed for frequent cleaning.
Objective: Smooth surfaces without retention, mechanisms that can be dismantled without tools, possibility of drying in place.
PBM 2060 – “Pharmaceutical”
Designed for intensive and recurrent cleaning and sterilisation.
- Closed frame with retention tanks for the product
- 316L stainless steel structure
- Parts in contact with the product made of 316L stainless steel
- Centralized aspiration
- Design compliant with EHEDG standards
- CIP network optional
- Inerting optional
- Optional sterilisation
High-end finish for the pharmaceutical industry.
Objective: Polished stainless steel (Ra 0.4) compliant with GMP requirements. Fully accessible surfaces, with no retention areas or visible cables. Mechanisms can be dismantled without tools for cleaning and drying in place (CIP/SIP).
Auxiliary equipment
Our engineering team can customise every aspect of the system to meet your unique requirements: from bespoke parts to complete systems for your specific processes.
- Labelling machine - Printer
- Reject conveyor
- Vacuum Inerting Skid
- Drying-in-Place (DIP) station
- Clean-in-Place (CIP) station
- Automatic bag sealer
- Semi-automatic bag closing line
Deaeration probe to remove air from the product.
Vibrating bottom for compacting and stabilising the product in the bag.
Air evacuation system (trimming) for stable palletising and evenly shaped bags.
Filling system specific to the characteristics of your product.
Fields of application
Our bagging solutions meet the most stringent requirements of the chemical, food & feed and pharmaceutical industries, guaranteeing hygiene, safety and productivity. Halpaq adapts each packaging line to your specific requirements, whatever your products and volumes.
Is your sector of activity not listed?
Materials handled
Powders
& Fine Powders
- Milk powder
- Protein powder
- Vitamin powder
- Food additives and for animal feed
- Aromatic herbs and ground spices
Pellets
and Medium Granule Size Products
- Sugars (crystal, semolina)
- Frozen fruit and vegetables (small pieces)
- Chemical granules
- Food supplements (nutraceuticals) in granules
Special materials
& High Value Products
- Active Pharmaceutical Ingredients (APIs)
- Nutraceuticals (food supplements) in powder form
- Peptides and collagen in powder form>
